For this reason, fixture weight can influence the thermal load of a furnace and, consequently, the time required for heating and cooling.
This is one of the reasons why lightweight fixture materials such as CFC are increasingly considered for high-temperature heat treatment applications.

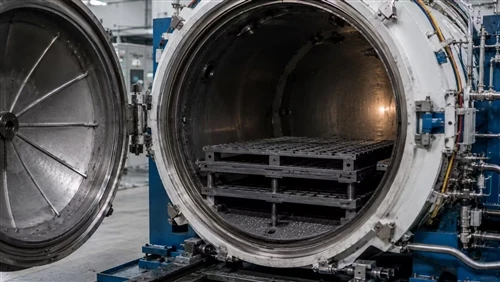

1.Why Does Fixture Weight Matter?
During a heat treatment cycle, the furnace must heat not only the workpieces but also the fixtures supporting them.
A heavier fixture means more material needs to be heated to the required process temperature.
In simple terms:
Heavier Fixture → Higher Thermal Mass → More Energy Required → Longer Heating/Cooling
This additional thermal mass becomes particularly important when the same furnace is operated repeatedly throughout the day.
For high-volume heat treatment production, even a small reduction in cycle time can accumulate into significant productivity gains over hundreds or thousands of cycles.
2.How a Heavy Fixture Can Increase Cycle Time
Consider a conventional metal fixture.
Steel fixtures are mechanically strong and widely used in heat treatment. However, their relatively high density means that a large amount of fixture material may need to be heated during every cycle.
The process can be viewed as:
Loading → Heating → Holding → Cooling → Unloading
The fixture participates in both the heating and cooling stages.
When fixture mass is high:
More energy is required during heating
More time may be needed to reach the target temperature
More heat must be removed during cooling
The overall heating and cooling stages can become longer
This doesn't mean fixture weight is the only factor determining cycle time. Furnace power, process temperature, workpiece mass, gas flow, loading configuration and cooling system all play important roles.
However, reducing unnecessary fixture thermal mass is one practical way to improve furnace efficiency.
3.How Lightweight CFC Fixtures Help
CFC fixtures are designed to significantly reduce fixture weight while maintaining the mechanical performance required for demanding heat treatment applications.
CFC fixtures can be 60–90% lighter than conventional metal fixtures, depending on the design and application.
The lower fixture weight means less fixture mass has to be heated and cooled during each production cycle.
60–90% Lighter Than Metal Fixtures
A lightweight fixture reduces the amount of material that participates in the thermal cycle.
This can help:
- Reduce thermal load
- Improve heating efficiency
- Accelerate cooling
- Shorten heating and cooling stages
- Increase furnace utilization
According to our product data, CFC fixtures can achieve up to 30% faster heating and cooling compared with conventional fixture solutions, depending on furnace configuration, load and process conditions.
4.Conclusion
Fixture weight is a relatively small part of heat treatment system design, but it can have a measurable influence on thermal load.
A heavy fixture requires additional energy during heating and retains additional heat during cooling. For repeated high-temperature processes, reducing unnecessary fixture mass can therefore be one approach to improving furnace efficiency.
CFC fixtures, with their relatively low density and high-temperature capability, offer an alternative to conventional metal fixtures where reducing thermal mass is an important process consideration.
However, the actual impact on cycle time depends on the complete furnace configuration, workpiece load and process parameters.
The key question is not simply whether a fixture is lighter, but:
How much of the furnace's thermal load comes from the fixture-and how much of that load can be reduced without compromising the requirements of the heat treatment process?
