XINGHUI MATERIALS is committed to becoming a leading expert in large-sized carbon/carbon (C/C) flat panels in China. We continuously strive to surpass technological boundaries in the development of ultra-large and ultra-thin products. We have now broken through the limitations of producing panels larger than 3 meters in size and have resolved technical challenges such as warping, delamination, and low production efficiency when the thickness is less than 3 mm. Currently, we have the capacity to produce 1,000 tons annually.
packing and delivery
Wooden box package
Product feature

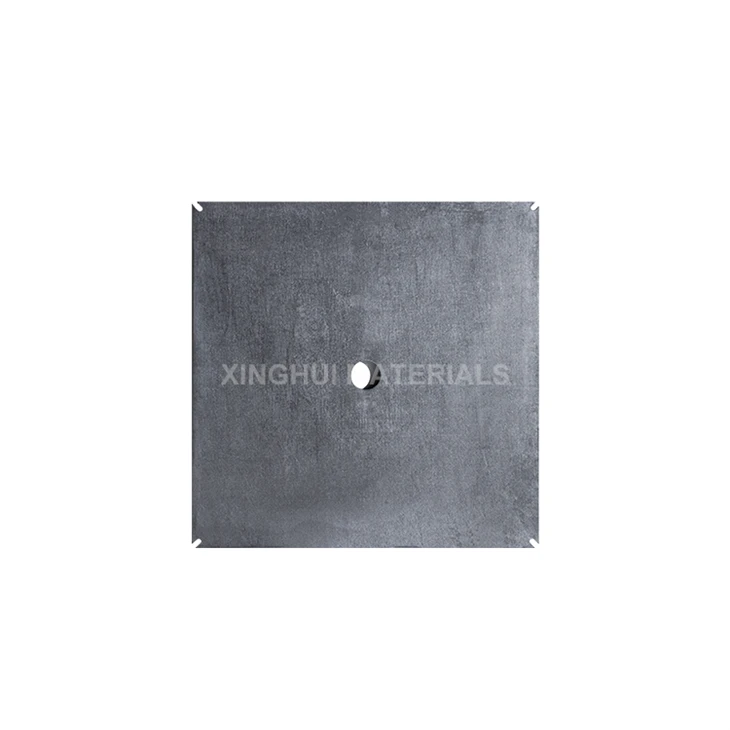

Carbon/carbon (C/C) components are formed by combining carbon fiber preforms with reinforcing materials, resulting in a range of desirable properties for the hot zones of vacuum high-temperature heat treatment furnaces. These properties include high strength, high-temperature resistance, excellent thermal stability, low thermal expansion coefficient, electromagnetic shielding, corrosion resistance, impact resistance, oxidation resistance, low weight, and good flexibility. The components can be manufactured in the form of flat panels through conductive heat pressing.
Product advantage
- Excellent processing performance
- High strength
- High flatness
- Low thermal conductivity
- Remarkable high-temperature resistance
- Outstanding corrosion resistance
- High stability
- Lightweight
- Excellent oxidation resistance
- Long service life
- Supports customized production
Product application
C/C composite flat panels are widely used as structural materials in semiconductor furnaces, photovoltaic mono/multi-crystalline furnaces, crystal growth furnaces, vacuum high-temperature furnaces, and powder metallurgy furnaces.
Technical Specification
|
Product Items |
Short Fiber CFC |
Woven Fiber CFC |
Long Fiber CFC |
|
Product Model |
CPS140 |
CPW150 |
CPA140 |
|
Reinforcement Fiber |
Short Fibers |
Long Fibers |
Long Fibers |
|
Fiber Orientation |
Multi-directional |
Bi-directional (0°/90°) |
Unidirectional |
|
Heat Treatment Temperature |
2000℃ |
2000℃ |
2000℃ |
|
Bulk density(g/cm³) |
1.4 |
1.5 |
1.4 |
|
Flexural strength(MPa) |
220 |
220 |
130 |
|
Flexural Modulus(GPa) |
35 |
54 |
35 |
|
Tensile Strength(MPa) |
150 |
134 |
80 |
|
Tensile Modulus(GPa) |
80 |
70 |
43 |
|
Compression strength(MPa) |
120 |
77 |
80 |
|
Thermal expansivity(10-6/℃) |
1.0 |
2.8 |
1.0 |
|
Thermal conductivity (1000℃) W/(m.k) |
10 |
8 |
10 |
|
Volume Resistivity(μΩ•m) |
55 |
55 |
55 |
|
Main Application |
Plates & Carriers Precision jigs |
Trays |
Bolts |
|
Standard Production size(mm) |
2000*1000*3 |
2000*1000*3 |
1000*1000*30 |
